The market is hungry for growth but the existing technologies create a significant growth barrier

The InCoax technology has become an important complement to fiber for closing the digital divide, when fiber access in existing MDUs is limited by construction, cost or preservation reasons.

By reusing existing property coaxial networks for high-performance MultiGigabit broadband access, these obstacles can be overcome for residents to be connected both faster and at a significantly reduced cost.

The MoCA Access™ 2.5 technology is a high performance, future proof, reliable and cost-effective complement to fiber, that reduces installation time and improves take-up rate, to boost digital inclusion and Internet access for all.

Fiber Access & Fixed Wireless Access (FWA) Extension Over Coax

InCoax’s Fiber Access & FWA Extension technology solves the ‘Last Mile Challenge’ of providing Gigabit or MultiGigabit broadband services to Multi-Dwelling Units (MDUs).

It uses the existing in-house coax cable infrastructure, positioning it a high performance, future proof, reliable and cost-effective complement to fiber, that reduces installation time and improves take-up rate. Subsequently it increases property reach and grows the addressable market size for operators, to boost digital inclusion and Internet access for all

The modems can be self-installed by tenants, saving time and money when installing and launching services. It can also be rolled-out in stages which shortens time to revenue, lowers initial CAPEX and contributes to faster overall Return on investment (ROI).

MoCA Access™ 2.5 standard

The MoCA Access 2.5 standard was created to solve the Last mile challenge. It is capable of 2.5 Gbps data speed using the existing in-building coaxial cabling.

MoCA Access is a point-to-point and point-to-multipoint system standard serving up to 31 modems (clients) per channel. It is designed to co-exist with legacy services such as cable- and satellite-TV, DOCSIS, and cellular (4G/5G) technologies.

The operating frequency range is 400 – 1675 MHz. It has low latency (delay less than 5ms) and is nearly symmetrical, throughput is up to 2.5 Gbps downstream and 2 Gbps upstream.

System overview

InCoax is Reinventing Connectivity for smart and cost-effective high performance Fiber Access and Fixed Wireless Access (FWA) Extension in existing property coaxial networks

A COMPLETE RANGE OF PRODUCTS
FOR MULTIGIGABIT BROADBAND ACCESS

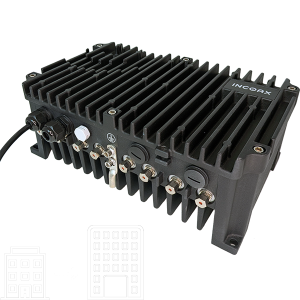

MoCA Access 2.5 Control units & Distribution Point units (DPU)

InCoax Control Units and DPUs are used for fiber access and fixed wireless access (FWA) extension deployments in MDUs. They covert and extend the broadband communication to the InCoax Access (NTE) modems situated in the apartments. The technology is based on the MoCA Access™ 2.5 standard supporting up to 2.5 Gbps symmetrical data rates with low latency on each channel in point-to-point (P2P) or point-to-multipoint (P2MP) coaxial networks.

The InCoax technology has a powerful web-based interface for existing operator provisioning system integration through standard protocols such as NETCONF/YANG and SNMP. Zero Touch Provisioning (ZTP) integration with the InCoax Element Management System allows for fast deployment of systems and effective use of human resources that saves time and money.

in:xtnd Control C251 & C254

Fiber access extension for MDUs in P2P & P2MP coaxial networks

MoCA Access™ 2.5 control units for fiber access extension deployments in MDUs using the existing in-building coaxial networks for Internet communication. Supports up 2.5 Gbps symmetrical data rates with low latency to maximum 31 InCoax Access (NTE) modems per channel in a shared point-to-multipoint network (up to 124 apartments on the 4-channel version). The enclosure is designed for passive cooling for indoor installation.

in:xtnd Control is cost-effective and rapid to deploy. It can co-exist with legacy TV services and DOCSiS 3.0 for faster transformation and increased take-up rate.  It is a series of robust and reliable FTTep (Fiber-To-The-extension-point) network elements that can be deployed anywhere there is broadband (fiber/FWA) and the in-building coaxial network access.

Approved for Europe, North America and Australia.

coax
MoCA Access

Key features

  • MoCA Access™ 2.5 control unit
  • Ethernet northbound 10 Gbps SFP+ slot port
  • 1 or 4 channel serving up to 31 or 124 modems
  • Use available in-building coaxial network spectrum
  • Minimal LTE and low frequency interference
  • Provides symmetrical Gigabit or MultiGigabit services
  • Low latency
  • Supports co-existence with existing TV-services
  • Remote management over XML/SOAP, SNMP protocols
  • Zero Touch Provisioning (ZTP) through InCoax Manage EMS
  • Passive cooling
  • Approved for Europe, North America and Australia

in:xtnd Control C251 & C254

MoCA bands: A-A, A-B, A-C, A-D, A-E
Frequency range: 400-1675 MHz
Coax channel: 1x 2.5 Gbps (C251); 4x 2.5 Gbps (C254)
Access modems: 31 pcs (C251); 124 pcs (C254)

APPROVALS
Marking: CE, FCC, IC, UL/CNUS, RCM
EMC: EN55032:2015, EN55035:2017, FCC Part 15 B Class A, ICES-003 Class A
Safety: IEC62368-1:2014,EN62368-1:2014, AS/NZS 62368.1:2018, CSA/UL 62368-1:2014

ROHS: Directive 2011/65/EU

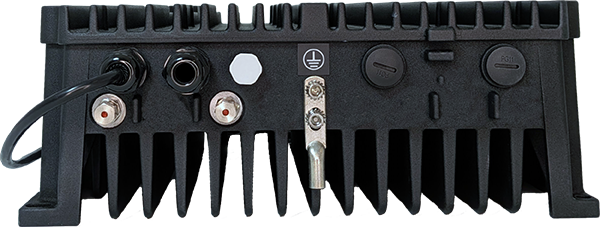

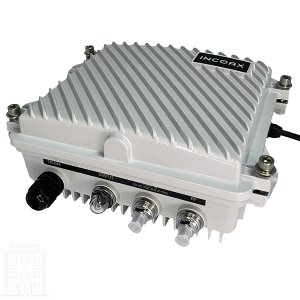

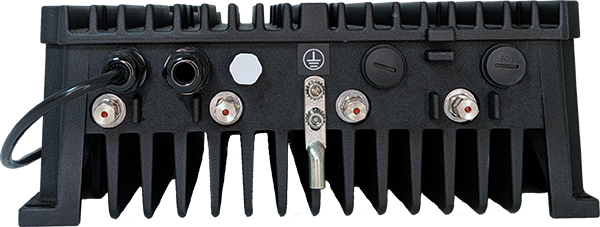

InCoax D2501 DPU

Fiber access extension for small MDUs in P2MP coaxial networks

MoCA Access™ 2.5 DPU for fiber access extension deployments in small MDUs using the existing in-building coaxial networks for Internet communication. Supports up 2.5 Gbps symmetrical data rates with low latency to maximum 16 InCoax Access (NTE) modems in a shared point-to-multipoint network. D2501 supports several up-link options as XGS-PON, GPON, Active Ethernet with 1 and 10 Gigabit Northbound link speed. IP67 enclosure with passive cooling for outdoor or indoor installation.

It is cost-effective and rapid to deploy. It can co-exist with legacy TV services and DOCSiS 3.0 for faster transformation and increased take-up rate.

D2501 is a robust and reliable FTTep (Fiber-To-The-extension-point) network element that can be deployed in pedestals, on poles, in manholes, or within the building – anywhere there is broadband (fiber/FWA) and the in-building coaxial network access. It is powered locally or remotely by an InCoax Power Inserter/Extractor connected to the network.

Several management options are available to support current management models over NETCONF/YANG or operator Persistent Management Agent Aggregator (PMAA). For monitoring it supports SNMP.

access point

Key features

  • MoCA Access 2.5 Control unit (DPU)
  • Extends XGS-PON, GPON & AON networks
  • Ethernet northbound 10 Gbps SFP+ slot port
  • 1 channel serving up to 16 modems
  • Use available in-building coaxial network spectrum
  • Minimal LTE and low frequency interference
  • Provides symmetrical Gigabit or MultiGigabit services
  • Low latency
  • Supports co-existence with existing TV-services
  • Remote management over NETCONF/YANG, SNMP protocols
  • Zero Touch Provisioning (ZTP) through InCoax Manage EMS
  • IP-67 enclosure with passive cooling
  • Powered locally or by reverse power inserter
  • Approved for Europe and North America
  • INCOAX D2501 DPU
    MoCA bands: A-A, A-B, A-C, A-D, A-E
    Frequency range: 400-1675 MHz
    Coax channel: 1 x 2,5 Gbps
    Access modems: 16 pcs

    APPROVALS
    Marking: CE, UKCA, FCC, IC, UL/TÜV
    EMC: EN55032:2015, EN55035:2017, FCC Part 15 B Class B, ICES-003 Class B
    Safety: EN IEC61000-3-2:2019, EN61000-3-3:2019, EN60950-22:2017, EN62368.1:2014, CSA/UL 62368-1:2019
    ROHS: Directive 2011/65/EU and 2015/863/EU

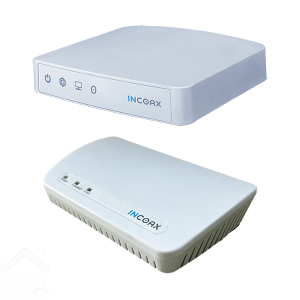

    InCoax Access modems

    InCoax Access modems is a series of MoCA Access™ 2.5  network termination equipment (NTE) used for fiber access and fixed wireless access (FWA) extension deployments in MDUs. They connect to any antenna outlet in the subscriber’s home for easy self-installation, supporting up to 1 or 2.5 Gbps symmetrical data rates with low latency on the LAN port in a point-to-point (P2P) or point-to-multipoint (P2MP) coaxial network.

    The passive diplexer pass-through supports existing legacy TV standards. Zero Touch Provisioning (ZTP) functionality makes it easy, fast, and cost-effective to deploy new customer modems. Digital devices such as computer, IP TV box, switch or router are connected to the LAN port.

    New Product!

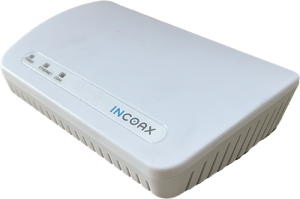

    InCoax Access A251

    MoCA Access™ modems with 2.5 Gbps performance

    InCoax Access A251 is a series of reliable MoCA over coax Network Termination Equipment (NTE) modems capable of up to 2.5 Gbps symmetrical data rates.  InCoax Access A251 communicates with InCoax DPU using the MoCA Access™ 2.5 standard. Approved in Europe and North America.

    what is moca

    Key features

    • Supports symmetrical MultiGigabit data rates of 2.5 Gbps
    • Reverse Power Feed versions
    • Extended Range versions with 10 dB increased link budget
    • Can co-exists with TV or Satellite services
    • Connects to antenna outlet
    • Remotely configurable
    • Easy self-installation by subscriber
    • Bracket included for easy wall mount
    • No software installation on the end-users
      computer
    • Approved for both Europe and North America

    MoCA bands: A-A, A-B, A-C, A-D, A-E (version dependent)
    Frequency range: 400 – 1675 MHz
    LAN-port 1x 2.5 Gbps

    APPROVALS
    Marking: CE, FCC, IC, ETL, UL, UKCA
    EMC: EN55032:2015 Class B, EN55035:2017, FCC Part 15 Class B, ICES-003(B)/NMB-3(B)
    Safety: EN IEC61000-3-2:2019, EN61000-3-3:2013, EN62368-1:2014, UL62368-1:2019, CAN/CSA-C22.2 NO.62368-1:2019
    ROHS: RoHS Directive 2011/65/EU and 2015/863/EU

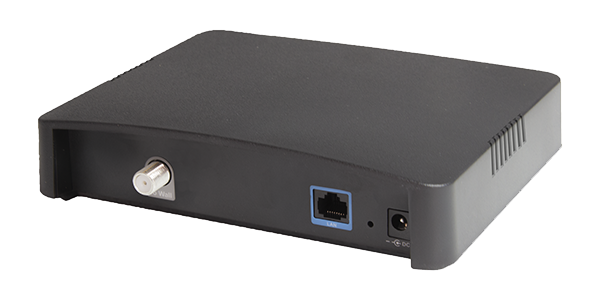

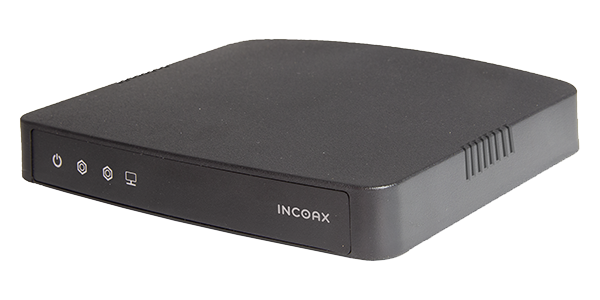

    InCoax Access A101

    in:xtnd Access MA2.5

    MoCA Access™ modems with 1 Gbps performance

    InCoax Access A101 is a series of reliable coax Network Termination Equipment (NTE) modems capable of 1Gbps broadband communication on one LAN port. Compatible with previous modem model versions. Multiple versions to support all MoCA bands.

    Approved for Europe, North America and Australia.

    in:xtnd Access MA2.5 is a reliable coax Network Termination Equipment (NTE) modem capable of 1Gbps broadband communication on each of the two LAN ports. Single version that can be programmed to support all MoCA bands.

    Approved for Europe and North America.

    what is moca
    MoCA Access

    Key features

    • Supports symmetrical Gigabit data rates
    • Can co-exists with TV or Satellite services
    • Connects to antenna outlet
    • Remotely configurable
    • Easy self-installation by subscriber
    • Bracket included for easy wall mount (A101)
    • No software installation on the end-users
      computer

    InCoax Access A101

    MoCA bands: A-A, A-B, A-C, A-D, A-E (version dependent)
    Frequency range: 400-1675 MHz
    LAN port: 1x 1.0 Gbps

    APPROVALS
    Marking: CE, FCC, IC, UL/ETL, RCM
    EMC: EN55032:2015, EN55035:2017, FCC Part 15 B Class B, ICES-003 Class B
    Safety: EN61000-3 (multiple),EN61000-4 (multiple), ETL/UL 60950-1:2007
    ROHS: Directive 2011/65/EU

    in:xtnd Access MA2.5

    MoCA bands: A-A, A-B, A-C, A-D, A-E (programmable)
    Frequency range: 400-1675 MHz
    LAN port: 2x 1.0 Gbps

    APPROVALS
    Marking: CE, FCC, IC, UL/ETL
    EMC: EN55032:2015, EN55035:2017, FCC Part 15 B Class B, ICES-003 Class B
    Safety: IEC60950-1:2006,EN50581:2012, CSA/UL 60950-1
    ROHS: ROHS 2.0

    access point

    InCoax Combine

    High performance frequency combiners
    Combine is a family of high performance di- and triplexer filters. The InCoax Combine is designed to be used for connecting one or two MoCA Access channels from an in:xtnd™ Control or InCoax DPU and FM/VHF into a single coaxial cable. This enables TV and high-performance broadband traffic to run through the same coax cable.

    InCoax Combine A-A, A-C:  400-900, 1025-1675 Mhz
    InCoax Combine A-B:  800-1675 Mhz
    InCoax Combine A-C:  1025-1675 Mhz
    InCoax Combine A-D:  1125-1675 Mhz

    F-connectors, 3/8″-32UNEF thread

    InCoax product

    InCoax Manage CLM

    Provisioning and Control System
    The InCoax Manage CLM (Coax Link Manager)is an advanced cloud based element manager with features for in:xtnd Control and InCoax DPU deployment, service-based InCoax Access NTE modem deployment, control and supervision of the coax link conditions. InCoax Manage CLM includes essential functions for service provisioning and network management.

    Group network configuration and management of multiple sites
    Performance monitoring and fault management of nodes and coaxial link
    System inventory overview and network topology map
    Resiliency and back-up/restore operations
    Traps for notification on activities
    Powerful fault detection
    Scalable architecture can handle very large number of networks
    Automatic element deployment with Zero Touch Provisioning (ZTP) functionality
    Intuitive and user friendly web-based GUI for operator efficiency
    Enhanced network visualization using Google Maps support
    XML-SOAP and Netconf/YANG interfaces
    Wide range of network statistics
    Manages Active Ethernet, GPON or XGS-PON fiber access extension networks
    Flexible user account handling, where access privilege can adapt to organization
    Multiple network owners can be managed in the same platform
