Home Adapters
Extends broadband connectivity throughout your home
InCoax Home Adapter is a series of reliable MoCA Home
Network Adapters
The InCoax Home Adapter is series of MoCA Home 2.5 network adapters for extending broadband connectivity throughout the home using the existing coaxial cable network. The adapters are perfect for removing dead spots in your home network and offer throughput speeds of up to 2.5 Gbps. The InCoax Home technology features high performance, low latency and the security necessary for a reliable home network, being the fastest in-home backbone for Wi-Fi.
KEY FEATURES
- Supports symmetrical MultiGigabit data rates
- Connects to antenna outlet
- Easy self-installation by subscriber
- Up to 16 Adapters, able to communicate with each other
- Support TR-069 /HTTP management function
- Automatic pairing function or optional MPS
(MoCA Protected Setup) function button - Can co-exist with TV services
- Approved for North America

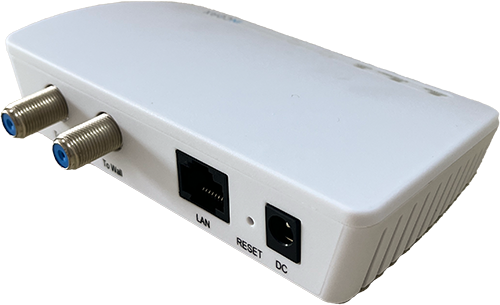

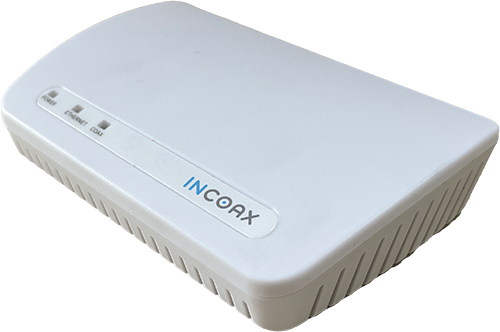

InCoax Home H2512D
InCoax Home H2512D is capable of maximum 2.5 Gbps symmetrical data rates on the ETH-port.
The H2512D has a coaxial port for TV coexistence.
InCoax Home H2511D
InCoax Home H2511D is capable of maximum 2.5 Gbps symmetrical data rates on the ETH-port.
MoCA band (data rate capabilities on the RF-port):
- MoCA Home Extended Band D (1125 – 1675 MHz), 2.5 Gbps MAC Rate
APPROVALS
- Safety: FCC, UL Certificates (power supply adapter)
CISPR PUB.22, FCC Part 15 Subpart B - RoHS: RoHS 2.0 standard 2011/65/EU, (EU) 2015/863
